Automatic gas-containing beverage filling machine liquid filling machine

Short Description:

>=1 Sets
$22,000.00

Model Number:GH-GHGZ-001

Warranty:1 Year for machinery warranty|1 Year for Core Components

Lead Time:
Quantity(Sets)           1 – 3              >3
Est. Time(days)          15           To be negotiated

Shipping:
Support Sea freight


Product Detail

FAQ

Our videos

Product Tags

Specification

The gas-containing beverage isobaric filling three-in-one unit is generally used for filling gas-containing beverages, such as Sprite, Coke, soft drinks, sparkling wine, etc. Because the pressure in the bottle to be filled before and after filling is equal to and greater than the pressure in the bin material, it is called isostatic filling.

The filling principle of equal pressure filling:

The equal pressure method is a filling method in which the packaging container is inflated at higher than atmospheric pressure to make it equal to the air pressure in the liquid storage tank, and then the liquid material flows into the packaging container by its own weight. It is also called pressure gravity filling. How to install.

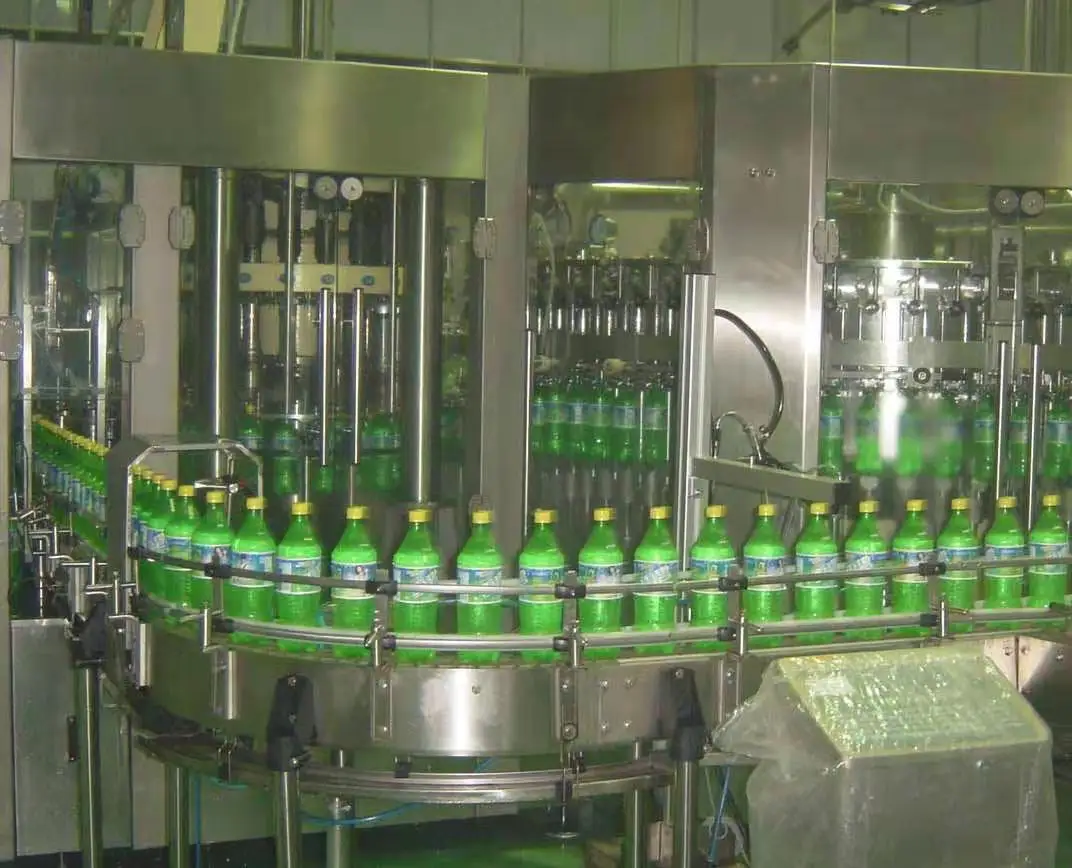

DGZ series gas-containing beverage isobaric filling three-in-one unit:

DGZ series gas-containing beverage isobaric filling three-in-one machine is suitable for filling plastic bottles or glass bottles of gas-containing beverages, and realizes rinsing, filling and capping on one machine. The design is scientific and reasonable, the appearance is beautiful, the maintenance is convenient, the hanging bayonet bottle, the bottle change is convenient, fast and labor-saving, the host adopts PLC programmable automatic control, touch screen, no bottle no cap, automatic stop system for bottle jam, the whole machine is in operation The noise is small, and the key electrical components adopt brands, such as Siemens, Omron, etc.

Model                                        DGZ14-12-5                DGZ18-18-6                 DGZ24-24-8                   DGZ32-32-8                   DGZ40-40-10

Number of flushing heads             14                                   18                                     24                                      32                                       40

Number of filling heads                 12                                   18                                     24                                       32                                      40

Number of sealing heads               5                                      6                                      8                                          8                                        1 0

Output (b/h)                             2000-3000                   4000-6000                   7000-8000                   8000-12000                   12000-15000

Power (kw)                                      2.2                                   3.5                                  4.5                                        5.5                                         5.5

Product name
Function
Filling
Usage
Easy Operation
Weight
3200KG
MOQ
1set
Payment
T/T, L/C
Packing
Wooden box, container
OEM
Available
Place of origin
Jiangsu,China
Product Description
